• Common Rail Hochdruckprüfgerät (Analog) 1000 bar
1 1

Autotestgeräte Leitenberger

Common rail high pressure tester (analogue) 1000 bar

Common rail high pressure tester (analogue) 1000 bar

€629,00 EUR
€629,00 EUR
Sale Sold out
  • For quick, easy and safe pressure testing of the high-pressure circuit on common rail diesel engines
  • Max. working pressure up to 1000 bar / 1400 psi
  • Required, for example, to check the high-pressure pump when starting the engine
  • Can be used universally thanks to the different CRPZ adapters
  • Precision high-pressure pressure gauge in stainless steel design, NG 63, measuring range 0...1000 bar, glycerine-filled
  • All individual parts are available as spare parts
  • Article number: CRP 01.2 ( 042134_1 )

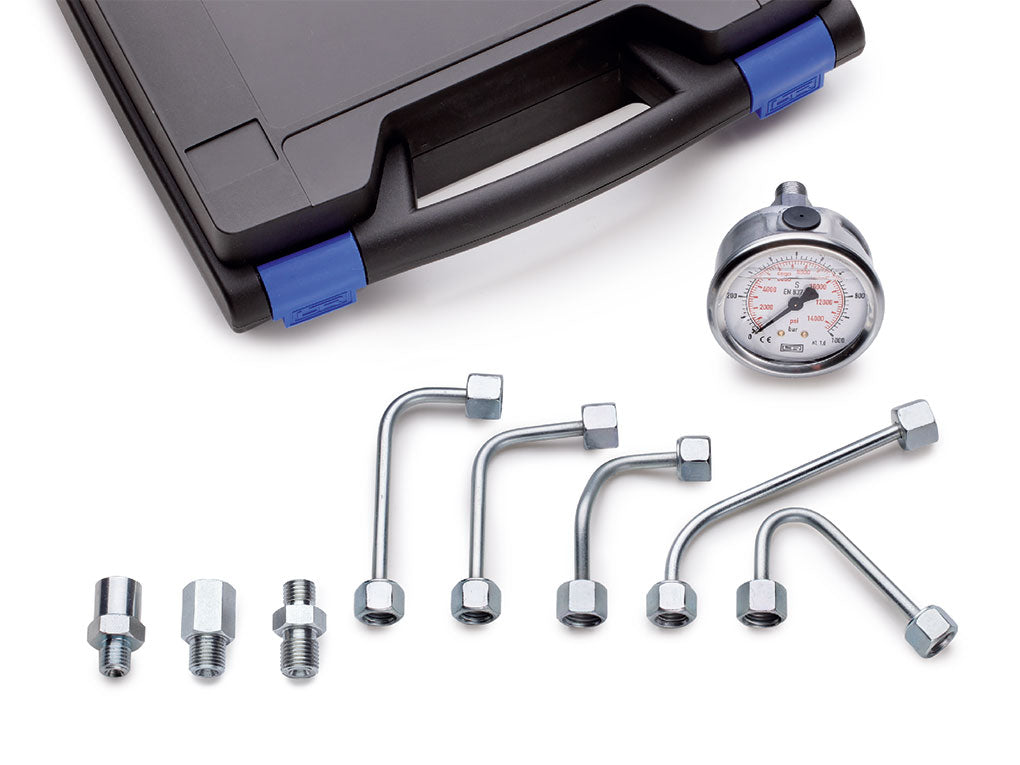

  • SCOPE OF DELIVERY
    • 1 high-pressure manometer NG 63, 0...1000 bar, filled with glycerin
    • 1 DETA (041257) adapter thread M 14x1.5 (IG) - M 12x1.5 (AG)
    • 1 reducing piece G 1/4 - M 12x 1.5
    • 1 CRPZ 01 (042114_1) adapter thread M 14x1.5 (AG) - M 12x1.5 (AG)
    • 1 CRPZ 02 (042115_1) diesel line rigid, 120 mm, bend 50°, M 12x1.5 - M 14x1.5
    • 1 CRPZ 03 (042116_1) rigid diesel line, 120 mm, bend 90°, M 12x1.5 - M 14x1.5
    • 1 CRPZ 04 (042121_1) rigid diesel line, 120 mm, bend 90°, angle length 40 mm
    • 1 CRPZ 05 (042122_1) rigid diesel line, 120 mm, bend 90°+45°, M 12x1.5 - M 14x1.5
    • 1 CRPZ 06 (042123_1) rigid diesel line, 120 mm, bend 65°, M 12x1.5 - M 14x1.5
    • Delivered in a sturdy plastic case
