Common rail return pressure tester for piezo common rail injectors including Bosch hose

For fast, safe and professional return pressure measurement of a Piezo Common Rail injector.

• Enables easy quality testing of the injector (good/bad statement).
• The device has a transparent test block that allows any air bubbles to be identified.
• Including FPZ 02 Bosch hose
• The test device can be used variably thanks to the interchangeable test cables "FTZ" (accessory).
• Can be used for Bosch, DELPHI, DENSO, VDO/Siemens injectors
• Vacuum pressure gauge NG 63, measuring range -1...+15 bar
• Venting/pressure relief via drain valve
• In conjunction with the optional return line check valve and the CRMK 01 return flow meter, an exact individual evaluation of the injector is possible
• Article number: FP 06U ( 041225_3 )

SCOPE OF DELIVERY

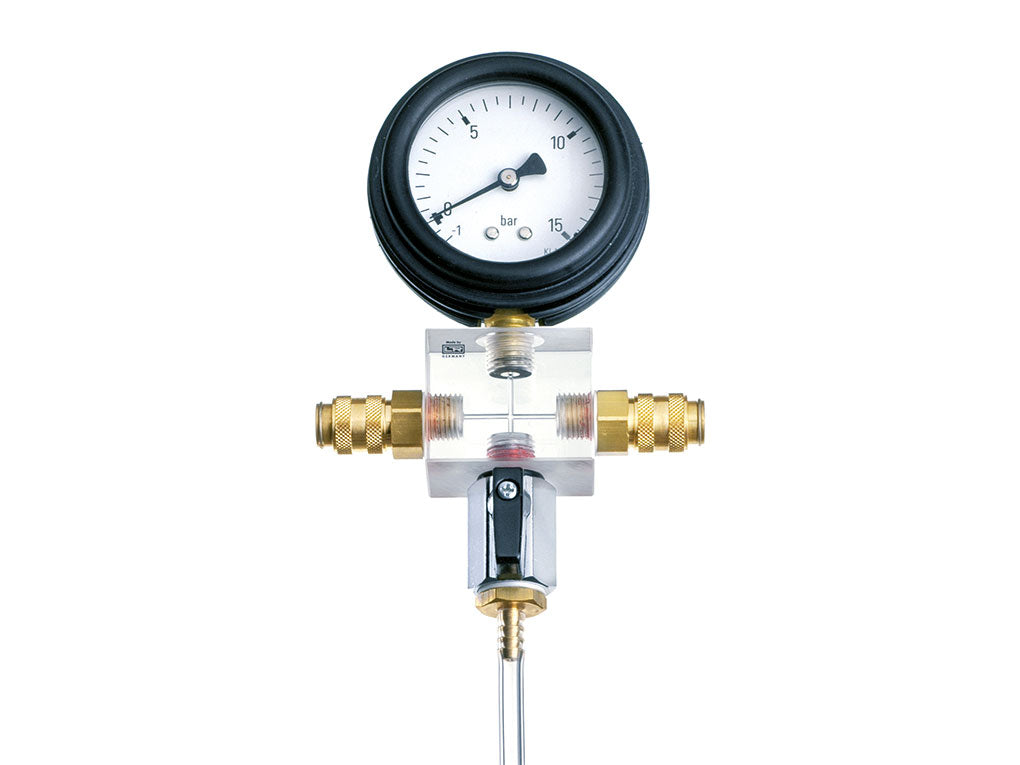

• 1 vacuum manometer with plexiglass test block
• 1 drain valve
• 1 PVC hose 0.30 m

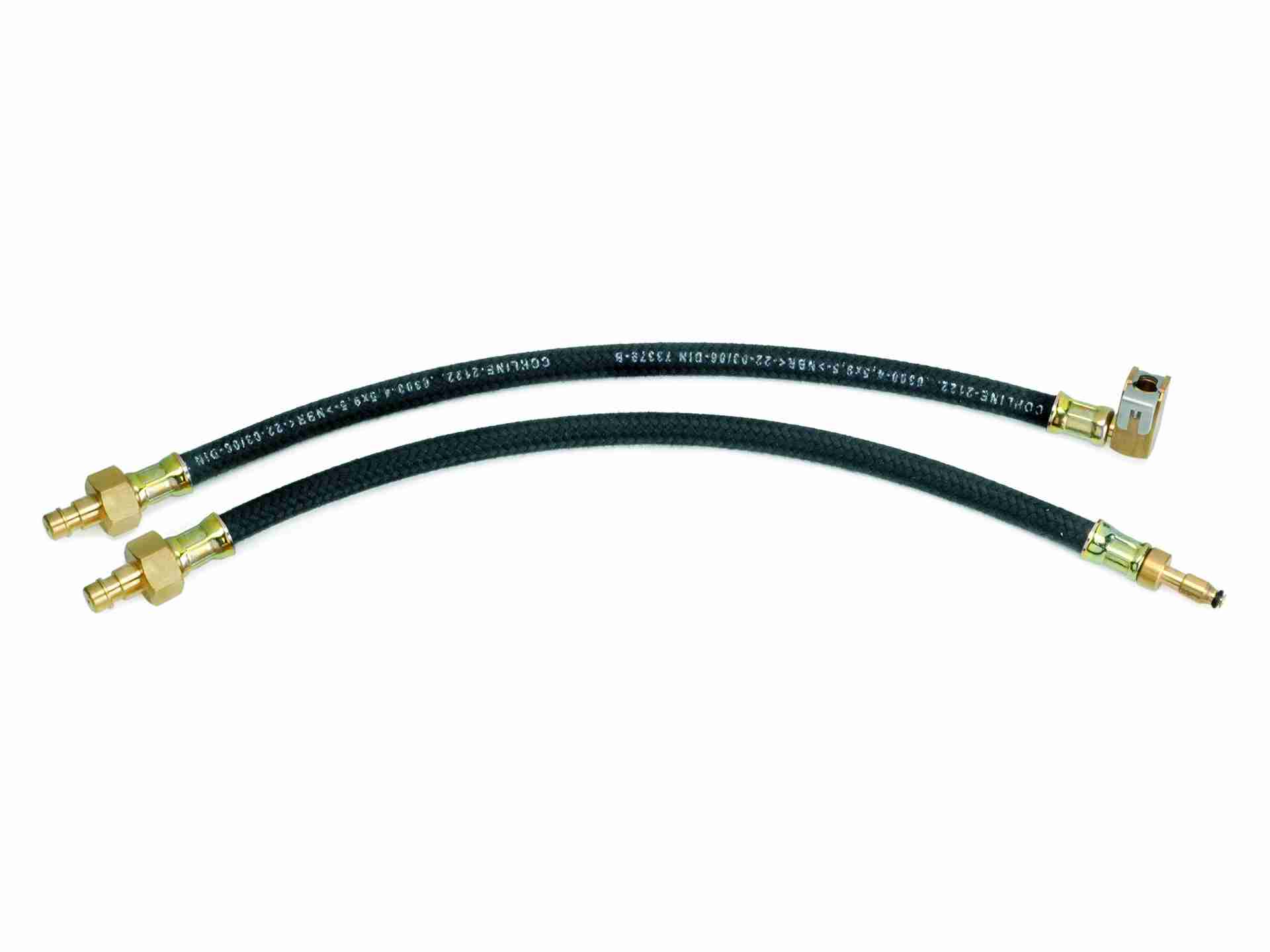

• 1 FPZ 02 hose set, connectable, hose length 0.30 m each, for BOSCH injectors.

Accesories

• ET 675 (C7) 90° angle adapter with hose for BOSCH piezo injector, with 8 bar non-return valve ( Note: Additional return line check valves available on request)
