Electric pump for bleeding the fuel system of diesel engines in commercial vehicles

• For quick, easy and professional venting of the fuel system of diesel engines in commercial vehicles
• particularly suitable for Daimler Truck HDEP (Heavy-Duty Engine Platform) and MDEG (Medium-Duty Engine Generation) engines
• Required e.g. for repair and maintenance work on the fuel system or when the tank is empty
• The power supply is provided via the 24 V/DC on-board network
• Light metal housing with carrying handle for mobile use, e.g. in service vehicles
• Integrated pressure gauge 0 ... 10 bar for monitoring the venting process
• Automatic shutdown at maximum pressure of 6.9 bar
• Device recommended by Daimler Truck/Daimler Buses!
• W 000 588 00 71 00

Technical data:

• Power supply: 24 V/DC via battery terminals
• Hose length: suction side 3.00 m
• Hose length: pressure side 2.50 m
• Pressure gauge: NG 63, measuring range 0 to 10 bar, glycerine-filled
• Weight: 8.0 kg
• Article number: DEG 01_24VDC ( 060504_2 )

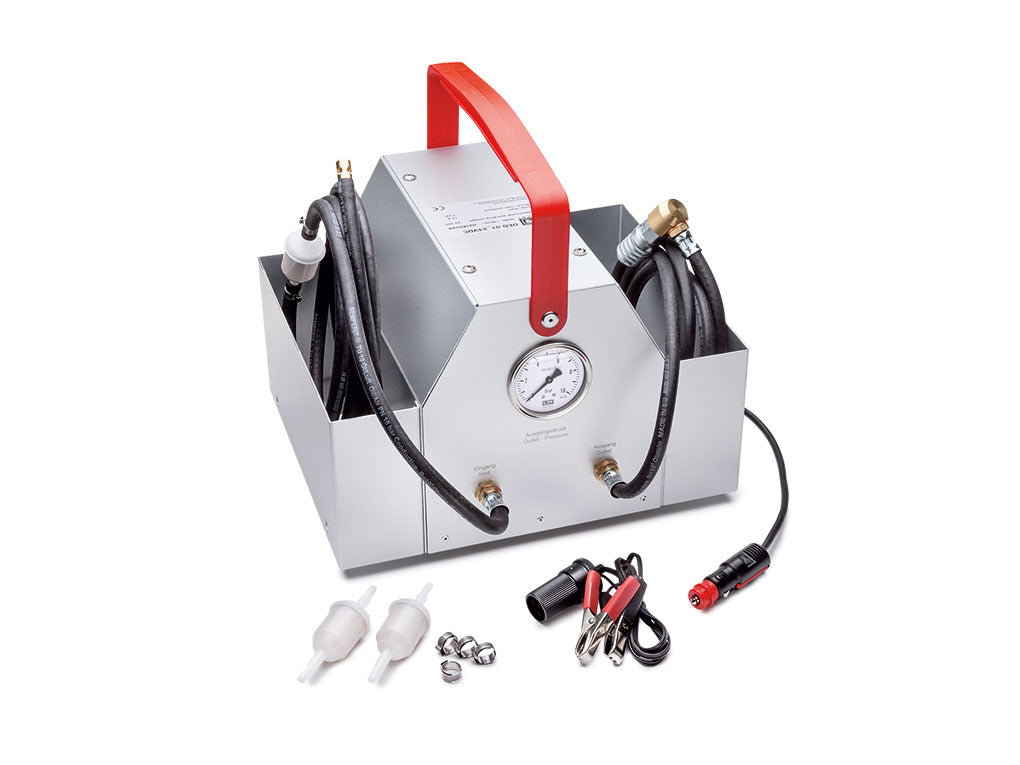

• SCOPE OF DELIVERY

  • 1 electric pump
  • 1 suction line with integrated fuel filter, length 3.00 m
  • 2 replacement fuel filters including 4 clamps
  • 1 pressure line with quick coupling, length 2.50 m
  • 1 connection cable with plug for cigarette lighter
  • 1 adapter cable with battery terminals
  • Delivery in a box
