Cooling system test case for vehicle models from VAG

The cooling system test kit for VAG vehicles is ideal for pressure testing, leak testing, and leak detection on the cooling systems of Volkswagen Group vehicles. The cooling system tester with quick-release coupling allows for the rapid connection of universal and vehicle-specific radiator adapters. The integrated release valve allows for precise regulation and safe release of the test pressure.

The ergonomically designed pump body is made of fiberglass-reinforced plastic and is designed for daily use in the workshop. The NG 52 precision pressure gauge with a robust rubber protective cap features a dual-band scale from 0–4.0 bar and allows for precise monitoring during pressure testing.

The test kit includes several cooling system adapters / coolant adapters specifically designed for numerous models from Audi, Bentley, Cupra, Lamborghini, Porsche, Seat, Skoda and Volkswagen.

Vehicle assignment – ​​Cooling system adapter

Adapter KS 22

Audi – Cooling system adapter for

• older Audi models (pre-1990)

Porsche – Radiator adapter for

• 911
• 996
• Boxster 986 / 987
• Carrera GT
• Cayman 987

Volkswagen – Coolant adapter for

• Golf I (from 1974)
• Golf II (from 1983 onwards)
• Scirocco (until 1993)

Adapter KS 38

Seat – Cooling system adapter for

• Arosa
• Cordoba
• Ibiza (from 1999 onwards)
• Leon (from 2000 onwards)
• Vario

Skoda – Radiator adapter for

• various models (from 1997 onwards)

Volkswagen – Coolant adapter for

• Caddy (until 1996)
• Golf III (from 1991 onwards)
• Jetta (from 1991)
• Passat (until 1996)
• Polo (until 1996)
• T4
• Vento (from 1993)

Adapter KS 65

Audi – Cooling system adapter for

• A1
• A2
• A3
• A4
• A5
• A6
• A7
• A8
• e-tron
• Q2
• Q3
• Q4
• Q5
• Q7
• Q8
• R8
• TT

Bentley – Radiator adapter for

• Bentayga
• Continental
• Flying Spur

Cupra – Cooling system adapter for

• Ateca
• Born
• Formentor
• Leon
• Tavascan
• Terramar

Lamborghini – Coolant adapter for

• Gallardo
• Huracán
• Revuelto
• Urus

Porsche – Cooling system adapter for

• Cayenne
• Panamera
• Taycan

Seat – Radiator adapter for

• Alhambra
• Altea
• Arona
• Ateca
• Exeo
• Mii
• Tarraco
• Toledo

Skoda – Coolant adapter for

• Citigo
• Enyaq
• Fabia
• Kamiq
• Karoq
• Kodiaq
• Octavia
• practice
• Roomster
• Scala
• Superb
• yeti

Volkswagen – Cooling system adapter for

• Amarok
• Arteon
• Bora
• Caddy (from 1997 onwards)
• Crafter
• Eos
• Fox
• Golf IV and subsequent generations
• ID.3
• ID.4
• ID.5
• ID.7
• Jetta (from 1997)
• LT 28 / 30 / 35
• Lupo
• New Beetle
• Passat (from 1997 onwards)
• Passat CC
• Phaeton
• Polo (from 1997 onwards)
• Sharan
• Scirocco (from 2008)
• T-Roc / T-Cross
• T5
• T6
• T7
• Taigo
• Tiguan
• Touran
• Touareg
• Up!
• Vento (from 1998)

Special features of the cooling system test kit

• Professional cooling system tester for VAG vehicles
• Suitable for pressure testing, leak detection and tightness testing
• Quick coupling system for universal and individual adapters
• Precision pressure gauge with rubber protection
• Ergonomic pump body made of glass fiber reinforced plastic
• Ideal for car repair shops, diagnostic work and service calls

Article number: LR 150_VAG ( 010786_1 )

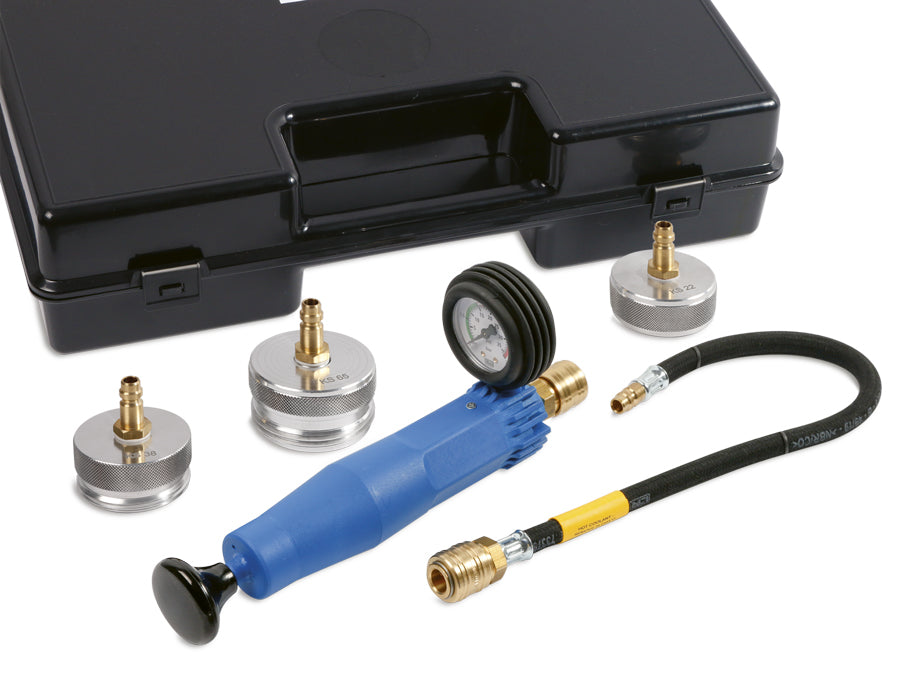

Scope of delivery:

• • 1 Cooling system tester TVU 139/1
  • 1 flexible intermediate piece FZ 100K
  • 3 test adapters (KS 22, KS 38, KS 65)
  • Delivered in a sturdy plastic case
