Radiator vacuum filling device with rubber cone set

• The radiator vacuum filling device guarantees a quick and bubble-free filling in the event of repairs or during initial filling without the need for subsequent venting of the cooling system. When the device is used, a vacuum leak test is carried out, thus avoiding the filling of a leaky cooling system. A vacuum is created in the cooling system using workshop compressed air (6...10 bar) through a Venturi nozzle. If the vacuum remains constant, the cooling system can be filled quickly and bubble-free by sucking in the coolant provided.
• Radiator vacuum filling device with rubber cone for connection to cooling system opening.
• Universally applicable thanks to the conical sealing rubbers
• Filling method can be used for almost all vehicle types
• Simple application
• Bubble-free filling
• Process-reliable and maintenance-free
• Filling including leak test in approx. 5 minutes
• Can also be used for venting auxiliary heaters

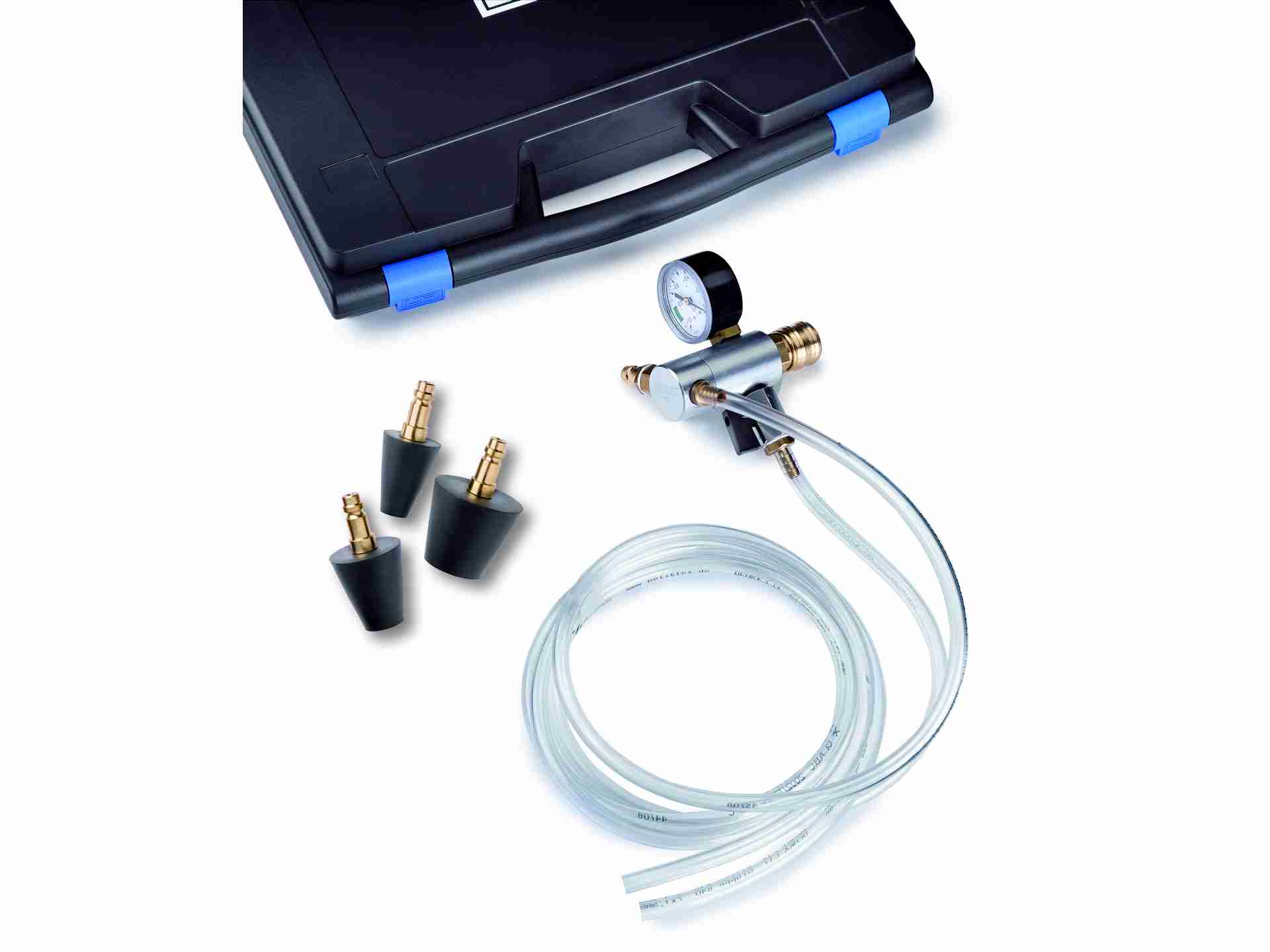

SCOPE OF DELIVERY

• 1 cooler vacuum filling device KVB 03, 1 Venturi nozzle
• 1 suction and 1 suction hose each
• Rubber cone 1: from 16...33 mm Ø
• Rubber cone 2: from 23...42 mm Ø
• Rubber cone 3: from 34...52 mm Ø
• Delivered in a sturdy plastic case
